Commercial EICR — Industrial Unit, Brill, Buckinghamshire
A 3-phase commercial EICR on a 5,000 sq ft mixed industrial and client-facing unit in Brill, Buckinghamshire — safe isolation, two distribution boards, high bay lighting, a vehicle lift and apprentice training on a live commercial site.
The Job
This commercial EICR was carried out at a mixed-use industrial and retail unit in Brill, Buckinghamshire — a working premises of approximately 5,000 square feet serving both trade and visiting clients. The unit operates as a working industrial space with a client-facing retail and office area, which meant the inspection had to be planned carefully around the operational requirements of the business.
The electrical installation comprised a single incoming supply feeding two 3-phase distribution boards, with a mix of 3-phase and single-phase circuits throughout. The installation included high bay lighting, a vehicle lift, multiple commando sockets and the standard single-phase circuits serving the office and retail areas. This is exactly the kind of mixed-use commercial installation that requires a methodical approach and genuine 3-phase experience to inspect correctly.
Safe Isolation — Non-Negotiable
Before any test instruments were connected and before any covers were removed, safe isolation was carried out in full. Every circuit was isolated, proved dead using a Kewtech voltage indicator and locked off using a safety lockout device before work commenced.
Distribution Board Locked off and Tagged during Safe Isolation.
This is not a box-ticking exercise. On a live commercial premises with a vehicle lift, high bay lighting and 3-phase commando circuits, the consequences of inadequate isolation are serious. Safe isolation is the foundation of every EICR we carry out — domestic or commercial, single phase or three phase.
The red safety padlocks visible in the images tell a simple story: nothing was touched until it was proved dead and locked off. That is the standard we work to on every job.
"The red safety padlock tells a simple story — nothing was touched until it was proved dead and locked off. That is the standard we work to on every job, without exception." — Keith Mannering, Director, Hobbs Electrical Group
The Inspection
With safe isolation confirmed, the inspection proceeded systematically across both distribution boards and all associated circuits. Visual inspection of both 3-phase distribution boards covered signs of overheating, correct cable sizing, adequate labelling, proper terminations and evidence of any previous unauthorised or substandard work.
Earth fault loop impedance testing was carried out across the installation using the Kewtech KT63DL multifunction tester — verifying that fault currents would operate protective devices within the required disconnection times under BS 7671. Continuity testing of protective conductors confirmed the integrity of the earth path throughout, and insulation resistance testing confirmed no breakdown between live conductors and earth.

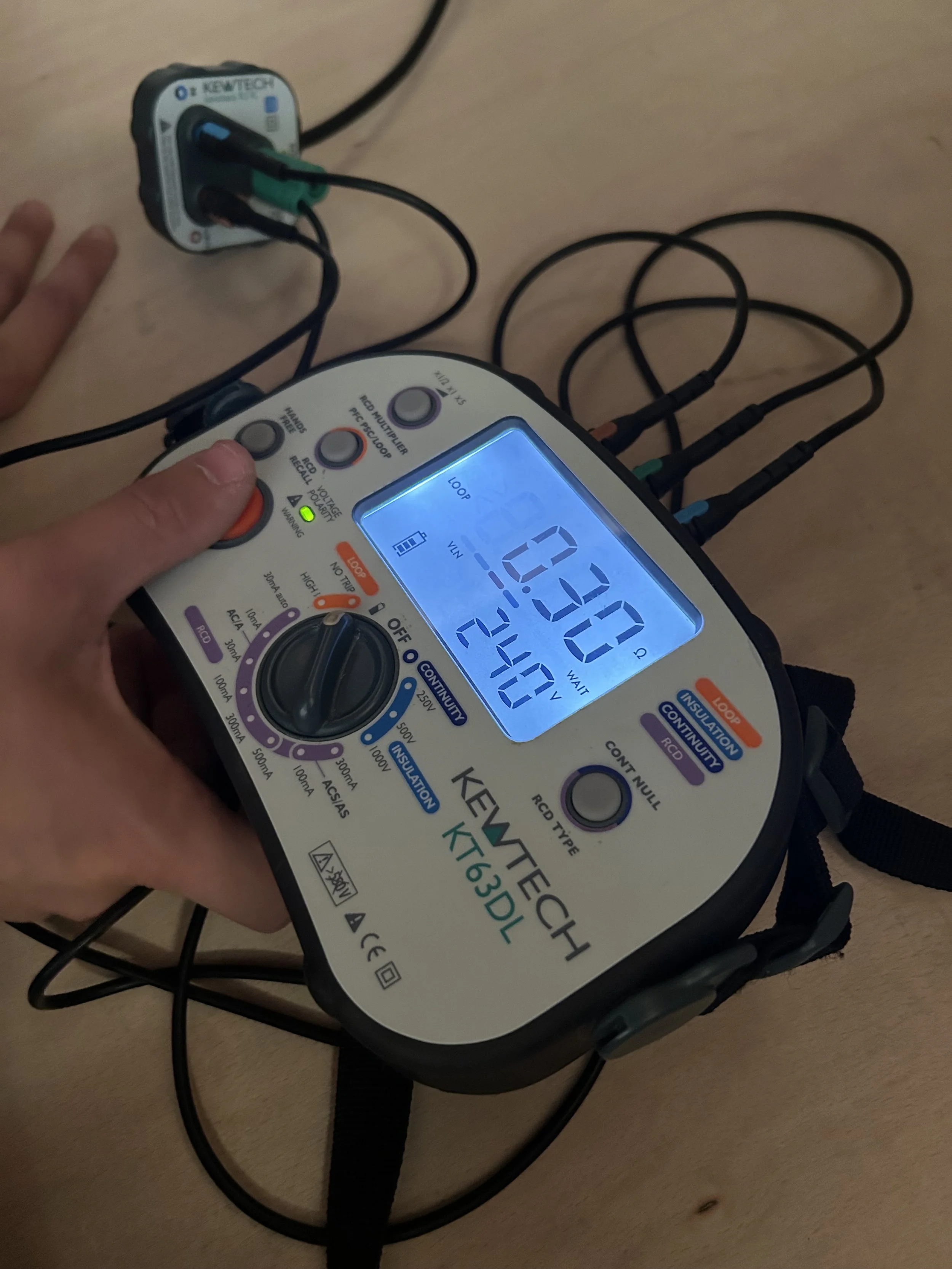

Earth fault loop impedance testing during Commercial EICR
The vehicle lift circuit and 3-phase commando sockets received particular attention — high-load circuits on commercial premises are often where deterioration or substandard work first presents itself.
What We Found
This was a working commercial installation that had clearly seen significant use. One of the distribution boards had a second sub-board feeding from it that had not been fully documented — a common finding on commercial premises that have been extended or modified over time. Both boards were inspected fully, with all circuits tested and results recorded.
The installation had a number of observations recorded on the report — items requiring further investigation or remedial attention, coded in accordance with the standard EICR coding system. The client received a full written report with all test results, observations and clear recommendations for any remedial works required.
Apprentice Training — On a Live Commercial Site
This job was also an opportunity to demonstrate safe isolation procedure and 3-phase testing methodology in a real commercial environment. There is no substitute for live site experience when training — textbooks explain the theory but a 5,000 square foot industrial unit with two distribution boards, a vehicle lift and multiple 3-phase circuits is where the understanding is built.
Safe isolation procedure, correct use of test instruments, systematic circuit testing and accurate result recording were all covered on this job. The importance of methodology — doing things in the right order, every time, without shortcuts — is the lesson that matters most on a commercial EICR.
Safe isolation lockout procedure during commercial EICR — Hobbs Electrical Group
Why Commercial EICRs Need Specialist Experience
A domestic EICR on a single-phase installation is a straightforward process for a qualified inspector. A commercial EICR on a 3-phase installation with multiple distribution boards, high-load circuits and a mix of single and 3-phase throughout is a different proposition entirely.
The testing methodology is more complex. The fault loop impedance calculations are different. The disconnection time requirements vary by circuit type. The risk of an inadequate inspection — one that misses a C1 or C2 defect on a high-load circuit — is significantly higher in a commercial environment.
We are C&G 2391-52 qualified — the specific qualification for inspection and testing. We carry out commercial EICRs on premises of this type regularly across Buckinghamshire, Hertfordshire and the surrounding counties. If you operate a commercial premises and your EICR is due — or if you have never had one carried out — call us on 01442 927057 or use our contact form for a free quote.
Job Summary
Location: Brill, Buckinghamshire Premises: Mixed industrial and client-facing commercial unit Size: Approximately 5,000 sq ft Supply: Single incoming 3-phase supply Distribution: Two 3-phase distribution boards Circuits: 3-phase and single-phase — high bay lighting, vehicle lift, commando sockets, office and retail Work carried out: Full EICR to BS 7671, safe isolation throughout, full test results issued same day Engineer: Keith Mannering — Director, Hobbs Electrical Group
